Colorful HMI display
PLC Based easy operation
Preheat w/o people by PID timing boot
Bigger Platen Size
Linear Potentiometer
Platform with elevator
Harmony Hydraulic System
Nitrided 38 CrMOALA extruder
Safety sensor protection
Energy accumulator low consumption
Quick material changeover
| technical parameter | |||

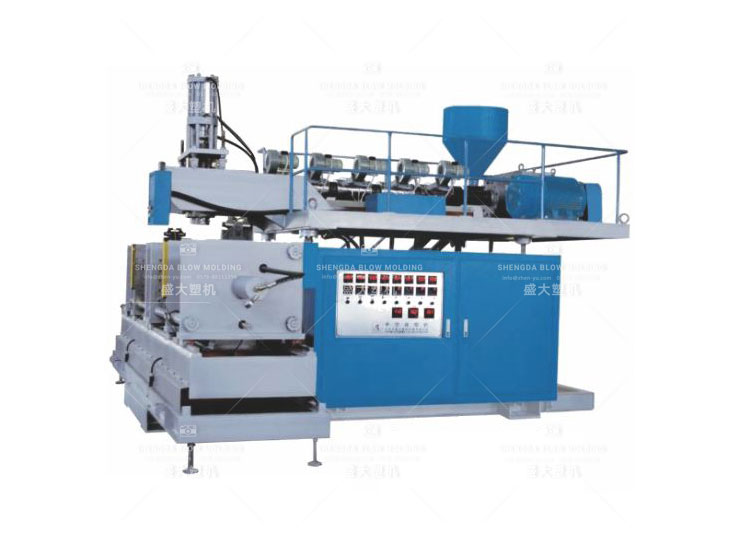

| SPECS | UNIT | ZK-70S | ZK-90S |
| w/o Parison Programming | With Parison Programming | ||
| Max. Product ref. | L | 20 | 50 |
| Machine Dimension (L* W *H) | M | 4.2×4.5×2.7 | 5×5×3.9 |
| Total weight | Ton | 6 | 13 |
| Clamping Unit | |||
| Clamping Force | KN | 160 | 300 |
| Platen Opening Stroke | mm | 250-800 | 3350-1050 |
| Max. Mold Size (W * H) | mm | 520×600 | 700×1000 |
| Mold Thickness | mm | 250-400 | 360-500 |
| Double Molds Stroke | 1150 | 1400 | |
| Power | |||
| Hydraulic Motor | KW | 15 | 15 |
| Total Power | KW | 60 | 85 |
| Fan Power for Screw | KW | 0.72 | 0.72 |
| Air Pressure | Mpa | 0.7 | 0.7 |
| Air Consumption | ㎥/min | 0.9 | 0.9 |
| Average Energy Consumption | KWH | 28 | 45 |
| Extrusion Unit | |||
| Screw Diameter | mm | 90 | 100 |
| Screw L/D ratio | L/D | 25：1 | 30：1 |
| Plasticizing Capacity | HG/HR | 110 | 180 |
| Number of Heating Zone | ZONE | 5 | 4 |
| Extruder Heating Power | KW | 12.5 | 18 |
| Extruder Motor | KW | 22 | 45 |
| Die | |||
| Number of Heating Zone | ZONE | 3 | 5 |
| Power of Die Heating | KW | 7 | 20 |
| Accumulator Capacity | L | 2 | 6 |
| Die Core Diameter | mm | 50-250 | 50-350 |
| Note: The data mentioned above are for reference only.Shengda reserves the rights of modification. Final machine details subject to each specific contract. | |||
